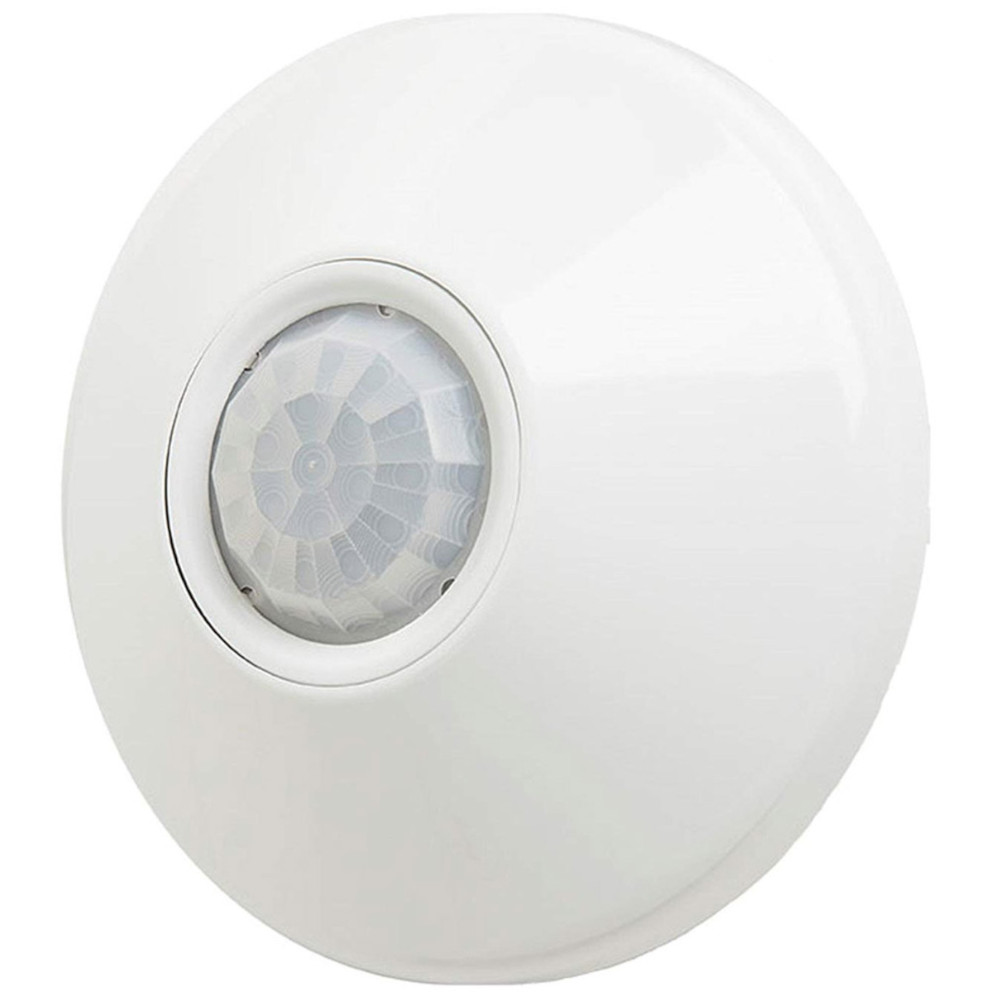

Acuity Sensor SW - OCC Sensors CMR9 800 Watt 120/277 Volt Ceiling Mount PIR Occupancy Sensor 500SF White

FEATURES _ Push-Button Programmable, Adjustable Time Delays, and Multiple Operating Modes _ 100 Hour Lamp Burn-in Timer Mode _ No Field Calibration or Sensitivity Adjustments Required _ No Minimum Load Requirements STANDARD RANGE 360 LENS _ Best choice for small motion (e.g. hand movements) detection _ Viewing angle of 56 in a 360 conical shaped pattern _ Provides 12 ft (3.66 m) radial coverage when mounted to standard 9 ft (2.74 m) ceiling _ 8 to 15 ft (2.44 to 4.57 m) mounting heights provide 10 to 20 ft (3.05 to 6.10 m) radial coverage SPECIFICATIONS Electrical Input Ratings 120/277V, 80 mA, 50/60Hz 347V, 80 mA, 50/60Hz 480V, 80 mA, 50/60Hz Output Ratings 120V, 800W/6.67A - Tungsten, Ballast 120V, 5A- General Purpose 277V, 1200VA/4.3A - Ballast 347V, 4.3A - General Purpose 480V, 5A - General Purpose 125V, 1/4HP - Motor Relay Type Latching Low Voltage Output Ratings 0-10VDC, Sinks <20mA Class Rating 0-10V Dimming can be wired Class 1 or 2; Do not include if only Class 1 Standards/ Ratings Energy Management Equipment, UL916 (E167435) Mechanical Dimensions 4.55_W x 1.55_D (116mm x 40mm) Mounting Single-Gang or Octagonal Box, Surface Mount Color White Finish Matte Connection Type Line Voltage Leads Environmental Warrantied Operating Temperature: Standard: 14F to 140F (-10C to 60C) LT Option: -4F to 140F (-20C to 60C) Relative Humidity Up to 90%, Non-Condensing Environment Indoor Standards/ Ratings RoHS
