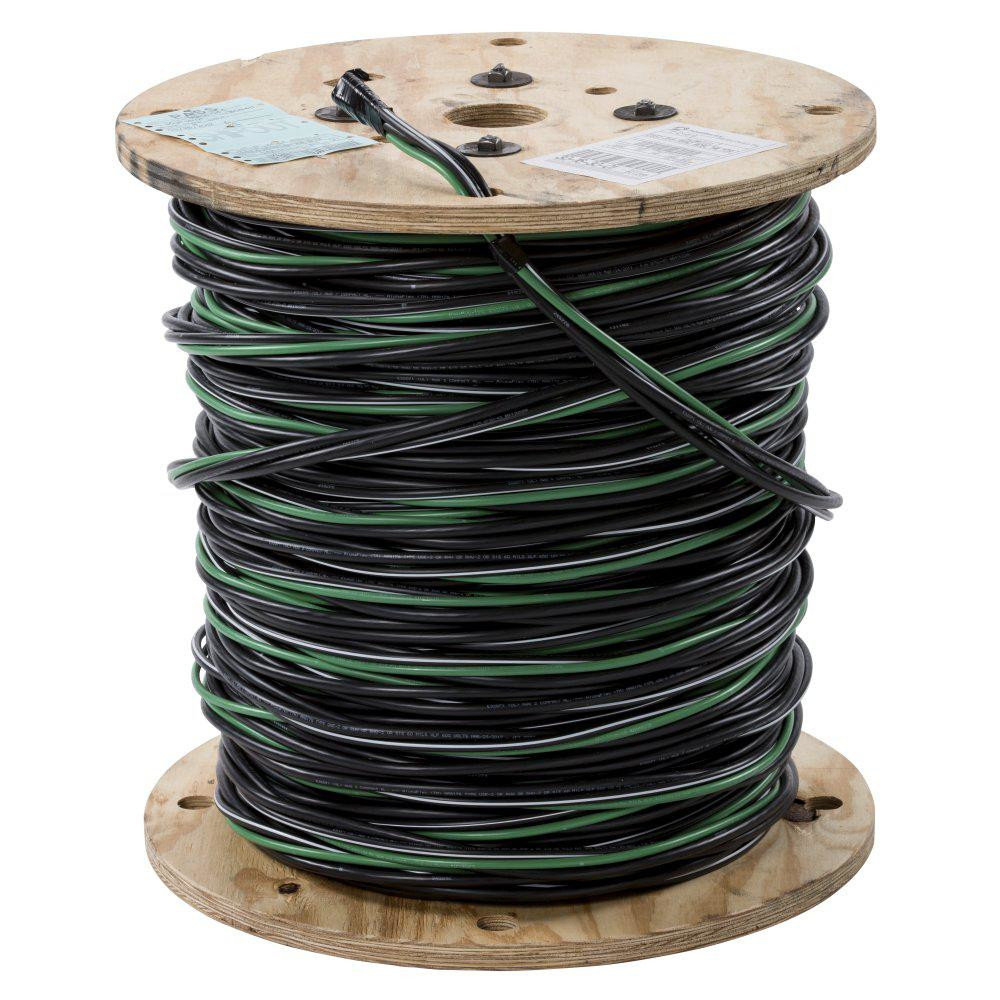

2-2-4-6 MHC 100 AMP Mobile Home Cable Aluminum Reel 1000 Ft (1 = 1 Ft.)

Mobile Home Feeder Cable. DESCRIPTION: MOBILE HOME FEEDER is designed for mobile homes as service entrance cable. THe cable meets the requirements of Underwriters Laboratory Inc., Standard #854 for Type USE-2 and Standard #44 for Types RHH and RHW-2. The cable has a maximum operating temperature of 90 deg. C in dry and wet locations. Rated at 600 volts, the cable is sunlight resistant and is approved for use in accordance with the recommendations of the National Electrical Code in raceways and undeground installations. The cable meets the requirements of Federal Specifications J-C-30B. CONDUCTOR: STABILOY compact stranded (AA-8000 Series aluminum alloy). INSULATION: Black cross-linked polyethylene (XLPE). CONSTRUCTION: Quadruplexed type USE-2/RHH/RHW-2 STABILOY aluminum alloy conductors. The grounded (neutral) conductor is identified by total white surface coating. The equipment grounding conductor is identified by total green surface coating. One phase conductor is identified by a single longitudinal red strip and the second is solid black. MARKING: Cables will bear the following surface marking: ALCAN (Plant) (Size) COMPACT STABILOY AA-8000 AL XLP 600V USE-2 OR RHH OR RHW-2 (UL) (Year) Cable Construction: 2-2-4-6 Ampacity: 100A Insulated Phase Conductor: Insulation: 60 mils. Diameter: .390" Insulated Grounded (Neutral) Conductor: Insulation: 60 mils. Diameter: .335" Insulated Equipment Grounding Conductor: Insulation: 60 mils. Diameter: .290" Cable Diamter: .944" Weight: 295 lbs. per 1000'
